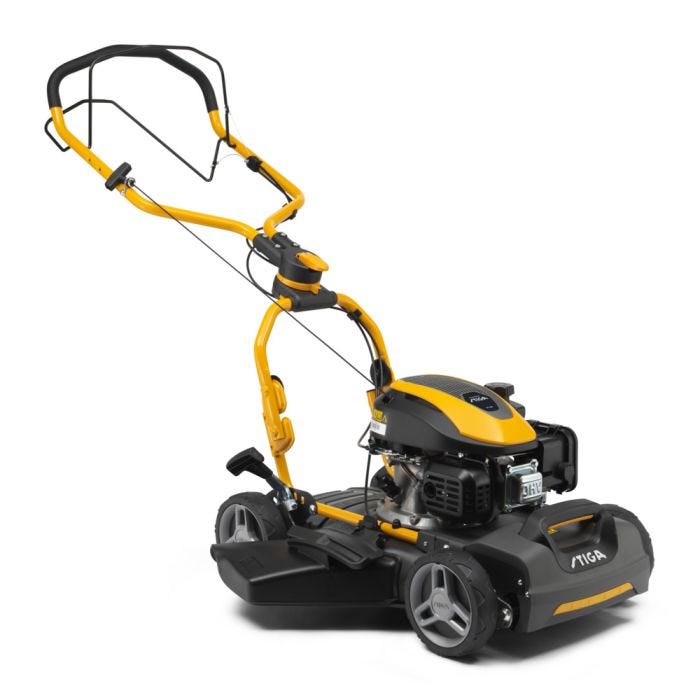

Multiclip 747 SD

Petrol lawn mower
  • New
Mulching lawn mower with 139 cc petrol engine and front-wheel drive.
  • New Fulcrum handlebar – set the height and angle as you cut
  • 139 cc STIGA petrol engine
  • 45 cm cutting width
  • STIGA Multiclip mulching function
  • Self-propelled
Tax Included

Product details and specs

The Multiclip 747 SD lawn mower was specially designed for mulching – which finely shreds the grass cuttings and deposits them on the ground as a natural lawn fertilizer – and has a 45 cm cutting width and centralised cutting height that can be adjusted to 5 settings ranging from 31 to 80 mm. This self-propelled machine is powered by a reliable, high-performance 139 cc STIGA engine with a net power output of 2.2 kW @ 2900 rpm. The ergonomic handle has a soft grip for user comfort. The convenient front handle makes it easy to transport. The Multiclip 747 SD can also be used in side discharge mode using the deflector.

A step up for you to work in larger garden environments or be engaged in multiple tasks and for longer sessions.

  • Robust tools
  • Tougher jobs
  • Prolonged sessions
  • Diversified works

What kind of gardener are you?

Discover our product range and find the right product to suit your gardening style!
Essential
Developed for all gardening newbies or those gardeners who want to act quick and achieve a certain garden quality.
  • Lightweight tools
  • Easy to start, adjust, use, clean and store
  • Simple and intuitive functions
Experience
A step up for you to work in larger garden environments or be engaged in multiple tasks and for longer sessions.
  • Robust tools
  • Tougher jobs
  • Prolonged sessions
  • Diversified works
Expert
Our most powerful and featured products, with customised performance thanks to the many functions and accessories: you don’t need to be a professional, these products make you an Expert.
  • Durable tools
  • Superior power output
  • For really intense working environment
  • Customisable performance
  • Most responsive control

What's in the box

Multiclip 747 SD
Multiclip 747 SD
Petrol lawn mower
  • lensSide deflector

Technical specs

General info
Level
Experience
SKU
298472848/ST2
Series
Series 7
EAN/UPC
8008984852143
Lineup
Multiclip
Power
Power source
Petrol
Power
2.2 kW
Engine Brand
STIGA
Engine model
ST 140 OHV Autochoke Powered by STIGA
Displacement
139 cm³
Engine rotation speed
2900 rpm
RPM control
Fixed rpm
Starter
Recoil
Fuel tank capacity
0.75 l
Engine Oil tank capacity
0.5 l
Maximum working area
1500 ㎡
Cutting system
Cutting method
Mulching, Side discharge
Mulching function
Yes
Cutting width
45 cm
Deck material
Galvanized steel
Cutting height adjustment
Centralized
Cutting height positions
5 positions
Cutting height range
31 - 80 mm
Drive system
Driving
Self-propelled
Traction
Front-wheel drive
Speed forward
4 Km/h
Equipment
Handlebar type
Fulcrum + soft grip
Wheels
180/180 mm grooved wheels on ball bearings with soft tread
Front handle
Yes
Foldable handlebar
Yes
Vibration and noise data
Vibration level hand (m/s2)
5.9
Measured sound pressure level at operator ear dB(A)
79
Measured sound power level dB(A)
93
Guaranteed sound power level (LwA) - dB(A)
93
Overall dimensions
Pack weight
32.3 kg
Product length
1420 mm
Product width
485 mm
Product height
1130 mm
Product weight
29 kg

Support

Should the lawn mower be protected from rain?
All STIGA lawn mowers are IPX4 certified, meaning that they are not damaged by rain. However, it is recommended to keep the lawn mower in a garage or store it indoors. Full information can be found in the instruction manual.
Is the product already assembled in the box?
The product is almost fully assembled when you open the box. The main parts have been put together and the remaining elements are easy to assemble. Follow the directions in the instruction manual to ensure the lawn mower is assembled correctly.
Is the instruction manual in the box?
The instruction manual is included in the box. The instruction manual can also be viewed or downloaded from the STIGA website, accessible from the "Manuals" section of the product page.
Which fuel and engine oil are recommended?
You should use petrol as fuel. In terms of engine oil, we recommend using the specific STIGA oil, which can be purchased separately. This will guarantee the best engine performance and optimal lubrication.
What cutting deck height is recommended for the mulching function?
The mulching system allows you to cut the grass into fine pieces, which remain on the lawn, restore nutrients and support growth. To use this function, the height of the chassis must be set so that the grass will be cut to a length that does not exceed a third of the total grass height of the lawn.
How should the oil level be measured?
To correctly measure the oil level, you need to make sure the lawnmower is on a flat surface, unscrew the cap which has a built-in dipstick for measuring, clean off any oil on the dipstick and reinsert it without screwing it in. Take the dipstick back out and check the level, which must lie between the MIN and MAX values. Top up, if required, and screw the cap back on. Full details can be found in the engine manual.
