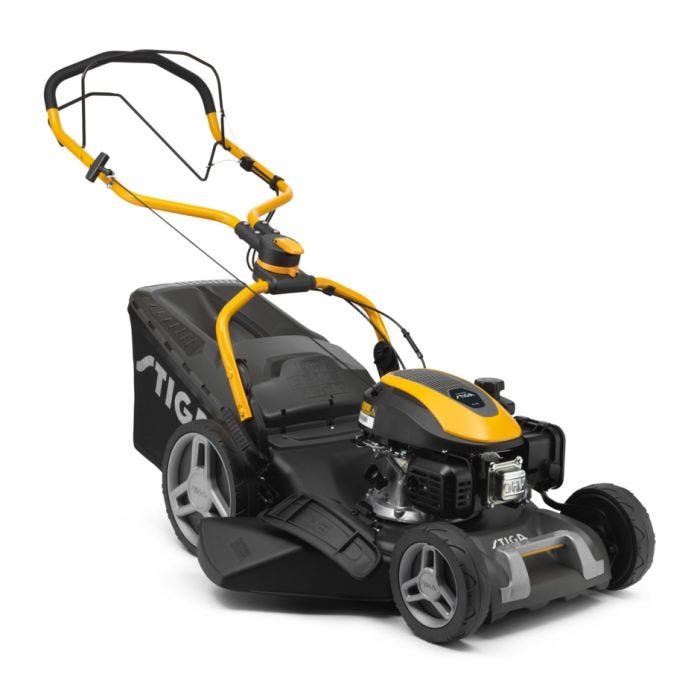

Combi 748 S
Petrol lawn mower
Self-propelled lawn mower with 139 cc petrol engine and 4-in-1 cutting system: collection, mulching, side discharge and rear discharge. 60 litre collector.
- 139 cc STIGA petrol engine
- Self-propelled
- 46 cm cutting width
- 60 litre grass collector with grassbag full indicator
- 4-in-1 cutting system: collection, mulching, side discharge and rear discharge modes
Product details and specs
The self-propelled STIGA Combi 748 S lawn mower has a 46 cm cutting width and a 60 litre hybrid grass collector with grassbag full indicator. The galvanized steel chassis houses a reliable 139 cc STIGA engine with a net power output of 2.20 kW @ 2900 rpm. The Combi 748 S lets you select from 4 different cutting functions: rear discharge, side discharge, collection or mulching, which finely shreds grass cuttings and distributes them on the lawn as a natural fertilizer. The centralised cutting height is easily adjusted with a lever to 6 different positions, ranging from 22 to 80 mm. The large (280 mm) rear wheels make it easy to manoeuvre on uneven terrain. Side deflector and mulching plug included.
Technology
STIGA engines (petrol)
STIGA petrol engines are the power behind a whole range of machines – from lawn mowers and tractors to swift-to-start sweepers. Meticulously designed and rigorously tested – only the ones with maximum performance and minimum emissions make the cut.
Fulcrum
Specially engineered for STIGA lawn mowers, our Fulcrum handlebar completely reinvents your relationship with cutting your lawn. Innovative in design, it can be angled up to 25° away from the deck – allowing you to mow under hedges and along walls without getting scratched, scuffed or dirty. Easy to assemble, adjust, use and store.
What's in the box
Combi 748 S
Petrol lawn mower- lensGrass bag
- lensMulching plug
- lensSide deflector
- lensPin for rear discharge
Technical specs
General info
Lineup
Combi
SKU
2L0486848/ST2
EAN/UPC
8008984851993
Level
Experience
Series
Series 7
Power
Power
2.2 kW
Power source
Petrol
Engine Brand
STIGA
Engine model
ST 140 OHV Autochoke Powered by STIGA
Displacement
139 cm³
Engine rotation speed
2900 rpm
RPM control
Fixed rpm
Starter
Recoil
Fuel tank capacity
0.75 l
Engine Oil tank capacity
0.5 l
Suggested working area
1200 ㎡
Cutting system
4 in 1 cutting system
Yes
Cutting width
46 cm
Deck material
Galvanized steel
Cutting height adjustment
Centralized
Cutting height positions
6 positions
Cutting height range
22 - 80 mm
Drive system
Driving
Self-propelled
Traction
Rear-wheel drive
Speed forward
3.7 Km/h
Equipment
Collector capacity
60 l
Handlebar type
Fulcrum + soft grip
Wheels
200/280mm grooved wheels on ball bearings with soft tread
Front handle
Yes
Adjustable handlebar
Yes
Foldable handlebar
Yes
Washing link
Yes
Collector type
Hybrid with warn
Vibration and noise data
Guaranteed sound power level (LwA) - dB(A)
96
Measured sound power level dB(A)
96
Measured sound pressure level at operator ear dB(A)
83
Vibration level hand (m/s2)
5.9
Overall dimensions
Pack weight
36.1 kg
Product length
1510 mm
Product width
530 mm
Product height
1200 mm
Product weight
32 kg
Related Accessories
Support
Is the instruction manual in the box for this petrol lawnmower?
The instruction manual is included in the box of this petrol lawn mower. The instruction manual can also be viewed or downloaded from the STIGA website, accessible from the "Manuals" section of the product page.
How should this petrol lawn mower be cleaned after use?
We recommend cleaning the petrol lawn mower in the normal way after each use. Before washing the petrol mower, we suggest that any residual grass or top soil is removed using the special STIGA scraper, which can be purchased separately.
Next, the inside of the chassis can be washed with water: connect the hose pipe to the washing link and follow the steps described in the user manual.
Next, the inside of the chassis can be washed with water: connect the hose pipe to the washing link and follow the steps described in the user manual.
Which fuel and engine oil are recommended for this petrol mower?
You should use petrol as fuel. In terms of engine oil, we recommend using the specific STIGA oil, which can be purchased separately. This will guarantee the best engine performance and optimal lubrication for your petrol lawn mower.
How should the oil level be measured on this petrol lawn mower?
To correctly measure the oil level, you need to make sure the lawnmower is on a flat surface, unscrew the cap which has a built-in dipstick for measuring, clean off any oil on the dipstick and reinsert it without screwing it in. Take the dipstick back out and check the level, which must lie between the MIN and MAX values. Top up, if required, and screw the cap back on. Full details can be found in the engine manual.
Do I have to remove the bag to use the side discharge function?
To use the side discharge function, you need to remove the bag, attach the mulching plug and join the deflector to the side of the cutting deck. You can re-attach the bag but it is not required for use in side discharge mode.
Where can I purchase a new blade for my petrol lawn mower?
When purchasing a new blade for your petrol mower, we recommend that you contact an authorised STIGA dealer. To find your nearest retailer, go to the "find a distributor" section of the website's main menu.
How to assemble the new STIGA handlebar: the Fulcrum
How to adjust the height of the new STIGA handlebar - the Fulcrum
How to fold the new STIGA handlebar - the Fulcrum - for storage
How to rotate the new STIGA handlebar - the Fulcrum - while in use
How to fix and adjust correctly the Fulcrum handlebar
