BC 330 AB
Petrol lawn trimmer / brushcutter
Brushcutter powered by a 25.4 cc petrol engine with straight shaft, bike-style handlebars and 43 cm cutting width.
- 25.4 cc 2-stroke petrol engine
- Bike handlebar
- Straight shaft
- 43 cm cutting width
- Tap&Go Dual Line (Pro) strimmer head and 3T blade included

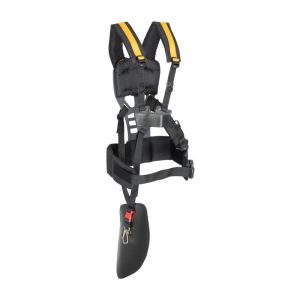

- Single harness included
Product details and specs
The STIGA BC 330 AB brushcutter is powered by a 25.4 cc (0.7 kW) 2-stroke petrol engine and has a cutting width of 43 cm. The compact and well-balanced BC 330 AB brushcutter has a jointed shaft meaning it can be separated into two parts for easy storage and transport, an ergonomic bike-style handlebars and a single harness. It also has a nylon Tap&Go head which quickly releases the line by simply tapping it on the ground and a 255 mm 3T blade which is ideal for cutting brushwood.
Developed for all gardening newbies or those gardeners who want to act quick and achieve a certain garden quality.
- Lightweight tools
- Easy to start, adjust, use, clean and store
- Simple and intuitive functions
What's in the box
BC 330 AB
Petrol lawn trimmer / brushcutter- lensNylon head Metal blade Harness Plastic bottle Screwdriver Socket spanner
Technical specs
General info
EAN/UPC
8008984853836
SKU
287121102/ST2
Level
Essential
Series
Series 3
Power
Power
0.7 kW
Power source
Petrol 2-stroke
Displacement
25.4 cm³
Engine rotation speed
11000 rpm
Maximum engine speed
11000 rpm
Idling speed (+/- 100)
3100 rpm
Starter
Easy start recoil
Primer
Yes
Choke
Manual
Fuel tank capacity
0.65 l
Carburettor type
Rotary valve
Ignition coil type
Analogic
Air filter type
Sponge
Cutting system
Nylon line diameter (millimeter)
2,4
Cutting width
43 cm
Nylon head type
Tap & Go dual line
Nylon line length
4 m
Blade type
3 T
Blade diameter
255 mm
Equipment
Handle type
Bike
Vibe Control System (VCS)
Yes
Shaft type
Straight split
Shaft tube diameter
26 mm
Inner shaft diameter
8 mm
Soft grip handle
Yes
Harness
Single
Tools kit
Included tools kit
Spark plug key, screwdriver
Vibration and noise data
Guaranteed sound power level (LwA) - dB(A)
109
Measured sound power level dB(A)
107.02
Measured sound pressure level at operator ear dB(A)
89.2
Vibration level left handle (m/s2)
3.48
Vibration level right handle (m/s2)
5.52
Overall dimensions
Pack weight
11.2 kg
Product weight without cutting system
6.8 kg
Product length
1890 mm
Product width
690 mm
Product height
435 mm
Product weight
7.6 kg
Related Accessories
Support
What kind of protective gear should I use?
Using this brushcutter petrol requires clothing that protects the legs and face from objects that could unexpectedly be thrown out during operation. It is always recommended to wear long trousers and a protective visor.
What kind of maintenance should I carry out?
To ensure that the brush cutter is functioning correctly and to maximise its lifespan, we recommend regular (based on the frequency and intensity of use) cleaning of the air filter, sparking plug and cutting head (trimmer head and guard) - parts where a lot of dirt constantly builds up.
Remember that it is important to consult the user and maintenance manual for details of each of these tasks.
Remember that it is important to consult the user and maintenance manual for details of each of these tasks.
Which type of grass and shrubs can you work on?
This petrol brush cutter is able to tackle coarser plant conditions, from dense bushes with tall grass to shrub areas, where you can also cut the more stubborn plants and shrubs using the supplied metal blade.
How do you adjust the length of the line?
This model is fitted with a head using the Tap&Go system. This means that, while the machine is operating, you just have to press the control lever all the way to bring the head to maximum rotation and at the same time knock the head against the ground, which causes the line to feed out automatically. Its length can be adjusted simply, by cutting any excess to the length of the cutting blade located on the end of the guard.
For further information, see the instruction manual.
For further information, see the instruction manual.
The line no longer feeds out from the head. What might have happened?
The line failing to feed out may be associated with two main factors. The first, and the most likely, is that the line might be all used up and should therefore be replaced with a new reel. There is also the possibility that the line within the head has accidentally become caught in its own windings, and is preventing the end from freely feeding out through the holes. In this case, simply open the head and re-spool the line correctly inside.
These causes and solutions normally cover the majority of cases, but there may be a variety of others, associated with the methods of use, the surface treated and the weather conditions.
Note that consulting the user manual, in the section relating to the cutting head, may provide useful information for identifying the nature of the problem.
These causes and solutions normally cover the majority of cases, but there may be a variety of others, associated with the methods of use, the surface treated and the weather conditions.
Note that consulting the user manual, in the section relating to the cutting head, may provide useful information for identifying the nature of the problem.
