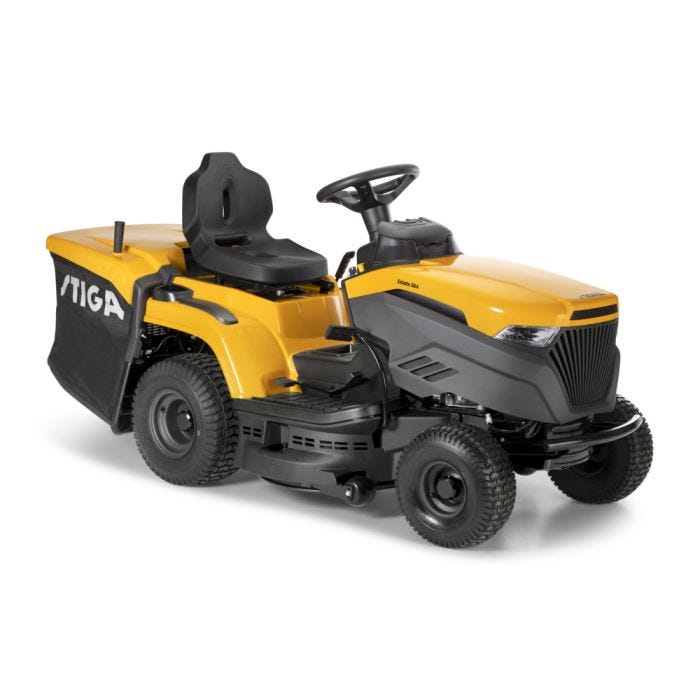

Estate 384
Petrol tractor
Petrol-powered ride-on mower with ST 450 STIGA engine 432 cc, 84 cm cutting deck with two blades and 240 L rear grass collector.
- STIGA engine with net power output of 6.8 kW @ 2400 rpm
- Pedal-operated hydrostatic transmission
- 84 cm cutting deck with 2 anti-scalp wheels
- 240 L grass collector
- Front bumper
- Battery charger and STIGA mulching kit sold separately
Product details and specs
The STIGA Estate 384 ride-on mower is equipped with a pedal-operated hydrostatic transmission that allows steady forward speed control, without having to change gears. The 84 cm cutting deck has two blades and 7 cutting height settings ranging from 25 to 80 mm, and a convenient electromagnetic blade engagement clutch that is button operated. The Estate 384 boasts a 240-litre rear grass collector and can also be used with the STIGA Multiclip function for mulching. The raised steering wheel makes for ergonomic, comfortable driving. Battery charger and mulching kit sold separately. A STIGA Ergonomic steering wheel works with a STIGA Classic adjustable high-back seat to make it a delight to drive.
Developed for all gardening newbies or those gardeners who want to act quick and achieve a certain garden quality.
- Lightweight tools
- Easy to start, adjust, use, clean and store
- Simple and intuitive functions
Features
Hydrostatic transmission
The pedal allows easy speed adjustment without having to change gears.
Button for mowing in reverse
A convenient button lets you mow whilst travelling in reverse.
Side compartment
The ride-on mower features a storage compartment and cup holder.
Technology
STIGA engines (petrol)
STIGA petrol engines are the power behind a whole range of machines – from lawn mowers and tractors to swift-to-start sweepers. Meticulously designed and rigorously tested – only the ones with maximum performance and minimum emissions make the cut.
Technical specs
General info
Series
Series 3
SKU
2T2100481/ST1
Level
Essential
EAN/UPC
8008984852303
Lineup
Estate
Power
Battery capacity
18 Ah
Power
6.8 kW
Power source
Petrol
Engine Brand
STIGA
Engine model
ST 450 Powered by STIGA
Displacement
432 cm³
Engine rotation speed
2400 rpm
Battery Voltage
12 V
Choke
Manual
Engine cooling
Air
Fuel tank capacity
6 l
Maximum working area
3500 ㎡
Cutting system
Cutting method
Collecting
Minimum uncut radius
80 cm
Cutting width
84 cm
Reverse mowing
Yes
Blade rotation
Untimed
Cutting height adjustment
Manual with lever
Cutting height positions
7 positions
Cutting height range
25 - 80 mm
Number of blades
2
Additional cutting method
Rear discharge, Multiclip mulching
Blade engagement type
Electric
Drive system
Traction
Rear-wheel drive
Transmission
Transmission type
Hydrostatic
Transmission method
Pedal-operated
Equipment
Collector emptying
Manual
Collector capacity
240 l
Steering wheel
STIGA classic
Seat type
STIGA classic
Seat adjustment
Screws
Dashboard
Yes with LED
Front wheel size
15x6.00-6
Rear wheel size
18x8.50-8
Headlights
Conventional
Bumper
Yes
Washing link
Yes
Collector type
Textile
Storage compartment
Yes
Cup holder
Yes
Pivoting front axle
Yes
Antiscalp wheels
2
Safety system
Seat with Safety Contact Breaker
Tools kit
Mulching kit
Optional
Battery charger
Optional
Trailer hitch kit
Optional
Vibration and noise data
Measured sound power level dB(A)
100
Max vibration on steering wheels (m/s2)
6.37
Max vibration on driver's seat (m/s2)
1.06
Guaranteed sound power level (LwA) - dB(A)
100
Measured sound pressure level at operator ear dB(A)
86
Overall dimensions
Pack weight
228 kg
Product length
2338 mm
Product width
880 mm
Product height
1100 mm
Product weight
165 kg
Related Accessories
Support
What is the proper way to clean the lawn tractor after mowing the grass?
The exterior of the tractor mower must be cleaned with water and detergent, paying attention not to get water in the electrical system, motor and circuit board located under the instrument panel. The collection bag should be emptied and cleaned of residue, then remounted so the cutting assembly can be washed, and then removed, rinsed and allowed to dry. When washing the cutting device assembly and the expulsion chute, the collection bag or rear discharge shield must be fitted, the operator must be seated, the cutting device assembly must be in position “1”, the engine running, transmission placed in neutral and the cutting device must be connected. Then connect a water hose to the appropriate pipe fittings and allow the water to flow for a few minutes while keeping the cutting devices in motion.
What action should be carried out before winter storage or before storing it for a period longer than 30 days?
After allowing the engine to cool down and fully recharging the battery, disconnect the battery cables and store it in a cool and dry place. Empty the fuel tank, clean the machine thoroughly, check the condition of the cutting device assembly, and, if necessary, contact the service centre. Then store the lawn tractor with the cutting deck in a lowered position, in a sheltered environment and, if possible, covered with a sheet.
What action should be carried out before initially using a riding tractor that has been stored over a winter or for a period longer than 30 days?
Refuel it and check the oil level, air filter and petrol filter. Check that the tyres are correctly pressurised and then set up the lawn mower tractor according to how you intend to carry out the mowing (side discharge, collection, rear discharge, mulching). For further information about the preliminary operations and safety checks, please refer to the designated sections of the instructions manual.
What standard maintenance operations does the lawn mower tractor need?
Before each use, we recommend that you perform safety and control checks, check the tyre pressure, and replenish the fuel and oil tank, if necessary. After each use, arrange for a general cleaning of the riding tractor. Please refer to the designated section of the instruction manual (“maintenance table”) for the regular actions recommended to ensure optimal use of the machine.
What are the cutting functions of the lawn tractor?
The riding tractor can be set up in different cutting modes: side ground discharge or cutting and chopping the grass using the special “mulching kit” function. The mulching cutting system allows you to mow the grass into fine particles, which remain on the lawn, restore nutrients and support growth.
What kinds of parts and accessories can the lawn tractor be equipped with?
The lawn tractor can be equipped with various parts and accessories to increase its functions and ensure maximum versatility all year round. For the complete list of parts and accessories, please refer to the relevant product page on the website.
Reach Informations
Information on Article 33 of REACH Regulation concerning STIGA Group products. Discover moreReach Informations
Estate 384
| 382722476/0 | PC BOARD MP84 (ISO) Waterwei | Lead | 7439-92-1 | ||||||||
| 118120007/0 | BATTERY 12V 18AH [HAIJIU] | Lead | 7439-92-1 | ||||||||
| 118400921/0 | HYDRO TRANSAXLE T2-ADBF-2X3C-1RX1 | 1) SEALANT MATERIAL : Octamethylcyclotetrasiloxane 2) PLUG 9/16-18 METAL: Lead 3) ROD BYPASS .375 X 3.81: Lead 4) CHK PLUG ASSY/WASHER,.027": Lead 5) CHK PLUG ASSY/WASHER,.027": Lead 6) FITTING 5/16 SAE, 5/32 TUBE: Lead | 1) 556-67-2 2) 7439-92-1 3) 7439-92-1 4) 7439-92-1 5) 7439-92-1 6) 7439-92-1 | ||||||||
| 125601577/0 | PULLEY | Lead | 7439-92-1 | ||||||||
| 382004618/0 | DECK ENGAGE CABLE | Lead | 7439-92-1 | ||||||||
| Component 1 | Component description 1 | Substance/s | CAS number | Component 2 | Component description 2 | Component 3 | Component description 3 | Component 4 | Component description 4 | Component 5 | Component description 5 |
|---|
