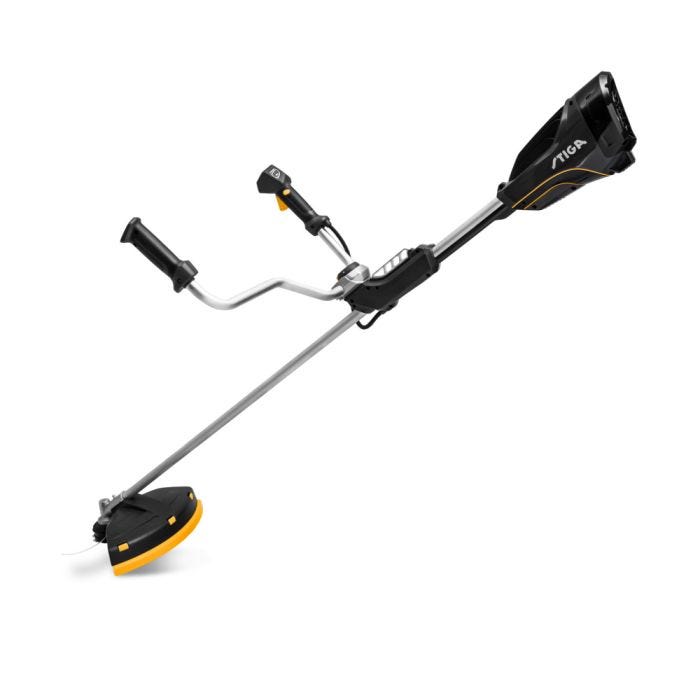

SBC 900 D AE Kit

Battery lawn trimmer - brushcutter

Heavy-duty performance. Light, balanced handling. Weighing only 6kg, the BC 900e B bike brushcutter effortlessly sweeps through tall grass and large areas of tough growth. Driven by a pair of ePower 475 48V 7.5Ah batteries carried in the BH 900e battery harness, its brushless 1Kw motor delivers 70 minutes of cutting time. If you need an extra surge of power, just push the trigger in the rotatable bike handlebar for instant acceleration. BS Plug.
  • Intelligent 1kW brushless motor – built to give years of powerful service
  • LEDS display and cutting speed control in handle
  • Lightweight aluminium gearcase for perfect balance and minimal noise
  • Fast trimmer line reloading
  • Ergonomic handlebar folds 90° for easy transport and storage
  • 2 STIGA ePower batteries E 475 (7,5Ah), charger and battery belt included.
  • Battery kit included
Tax Included

Product details and specs

SBC 900 D AE Kit detail 14
SBC 900 D AE Kit detail 15
SBC 900 D AE Kit detail 16
SBC 900 D AE Kit detail 17
SBC 900 D AE Kit detail 18
The BC 900e B brushcutter delivers the performance of a 45cc petrol brush cutter – minus the hassle of refueling and emissions. Two 48V 7.5Ah batteries provide 70 minutes of non-stop cutting. And because these are held in a comfortable, connecting harness, you experience the optimal balance of power and weight. From large gardens and farms to city parks, wherever you’re working, the ergonomic bike handle design and compact guard makes clearing tall grass or tough vegetation easy. A 1Kw electric brushless transmission drives the aluminium gearcase, delivering high-power torque and progressive speed reduction, while keeping the noise level below 96 dbA. And for easy control, the soft-grip handlebar displays four integrated LEDS for battery level monitoring. The 43cm cutting width also features the Bump & Work system for quick line feeding of the cutting head. When the job’s complete, the handle folds 90° to make transport and storage simple.

Our most powerful and featured products, with customised performance thanks to the many functions and accessories: you don’t need to be a professional, these products make you an Expert.

  • Durable tools
  • Superior power output
  • For really intense working environment
  • Customisable performance
  • Most responsive control

What kind of gardener are you?

Discover our product range and find the right product to suit your gardening style!
Essential
Developed for all gardening newbies or those gardeners who want to act quick and achieve a certain garden quality.
  • Lightweight tools
  • Easy to start, adjust, use, clean and store
  • Simple and intuitive functions
Experience
A step up for you to work in larger garden environments or be engaged in multiple tasks and for longer sessions.
  • Robust tools
  • Tougher jobs
  • Prolonged sessions
  • Diversified works
Expert
Our most powerful and featured products, with customised performance thanks to the many functions and accessories: you don’t need to be a professional, these products make you an Expert.
  • Durable tools
  • Superior power output
  • For really intense working environment
  • Customisable performance
  • Most responsive control

Features

Lightweight and long-lasting power
The STIGA battery harness (included) accommodates 2 x 48v 7.5Ah batteries for double the power and a runtime of 70 minutes.
Intelligent brushless motor
1kW output for maximum cutting performance. Reduced noise, no fumes or engine maintenance.
Noise reduction built in
Aluminium gearcase provides noise insulation and maximum torque.
Fast reloading of the trimmer line
The Bump & Work system quickly feeds the heavy-duty twin nylon line into the cutting head.
Snapshot acceleration at your fingertips
The STIGA control pad is conveniently positioned to control cutting speed and display battery status.

Technology

What's in the box

SBC 900 D AE Kit
SBC 900 D AE Kit
Battery lawn trimmer - brushcutter
  • lensKey
  • lensHarness
  • lensNylon head
  • lensBlade
  • lensBattery
  • lensBattery Charger
  • lensBattery Belt

Technical specs

General info
EAN/UPC
8008984861459
SKU
PROMO_BC900EBKIT_U
Level
Expert
Series
Series 9, ePower 48 V
Power
Power source
Battery
Battery capacity
5 Ah
ePower
Yes
Power
1 kW
Voltage
48 Volt
Battery kit
Included
Motor type
Brushless
Maximum motor speed
6200 rpm
Lithium battery nominal energy
216 Wh
Working time (+/- 20%)
25 min
Cutting system
Nylon line diameter (millimeter)
2,4
Cutting width
43 cm
Cutting angle
Fixed
Nylon head type
Bump & Work dual line - Easy load
Nylon line length
4 m
Blade type
3T ARC
Blade diameter
255 mm
Equipment
Handle type
Bike
Vibe Control System (VCS)
Yes
Shaft type
Straight
Shaft tube diameter
25.4 mm
Soft grip handle
Yes
Harness
Single
Tools kit
Battery charger
Single standard
Battery charger output current
1.5 A
Battery charger plug type
BS (Type G)
Vibration and noise data
Guaranteed sound power level (LwA) - dB(A)
95
Measured sound power level dB(A)
91.3
Measured sound pressure level at operator ear dB(A)
81.3
Vibration level front handle (m/s2)
1.92
Vibration level rear handle (m/s2)
2.39
Overall dimensions
Pack weight
0 kg
Product weight without battery
7.3 kg
Product weight without cutting system
6.9 kg
Product length
1780 mm
Product width
680 mm
Product height
560 mm
Product weight
0 kg

Support

What kind of protective gear should I use?
Using this machine requires clothing that protects the legs and face from objects that could unexpectedly be thrown out during operation. It is always recommended to wear long trousers and a protective visor.
What kind of maintenance should I carry out?
To ensure that the machine is functioning correctly and to maximise its lifespan, we recommend regular (based on the frequency and intensity of use) cleaning of the battery housing and contacts as well as the cutting head (trimmer head and guard) - parts where a lot of dirt constantly builds up.
Remember that it is important to consult the user and maintenance manual for details of each of these tasks.
Which type of grass and shrubs can you work on?
This machine is able to tackle coarser plant conditions, from dense bushes with tall grass to shrub areas, where you can also cut the more stubborn plants and shrubs using the supplied metal blade.
How do you adjust the length of the line?
This model is fitted with a head using the Tap&Go system. This means that, while the machine is operating, you just have to press the control lever all the way to bring the head to maximum rotation and at the same time knock the head against the ground, which causes the line to feed out automatically. Its length can be adjusted simply, by cutting any excess to the length of the cutting blade located on the end of the guard.
For further information, see the instruction manual.
The line no longer feeds out from the head. What might have happened?
The line failing to feed out may be associated with two main factors. The first, and the most likely, is that the line might be all used up and should therefore be replaced with a new reel. There is also the possibility that the line within the head has accidentally become caught in its own windings, and is preventing the end from freely feeding out through the holes. In this case, simply open the head and re-spool the line correctly inside.
These causes and solutions normally cover the majority of cases, but there may be a variety of others, associated with the methods of use, the surface treated and the weather conditions.
Note that consulting the user manual, in the section relating to the cutting head, may provide useful information for identifying the nature of the problem.
Does the brush cutter have battery and charger included?
Yes, this battery powered brush cutter is sold with 2x 5 Ah, 48V battery and a battery charger.
