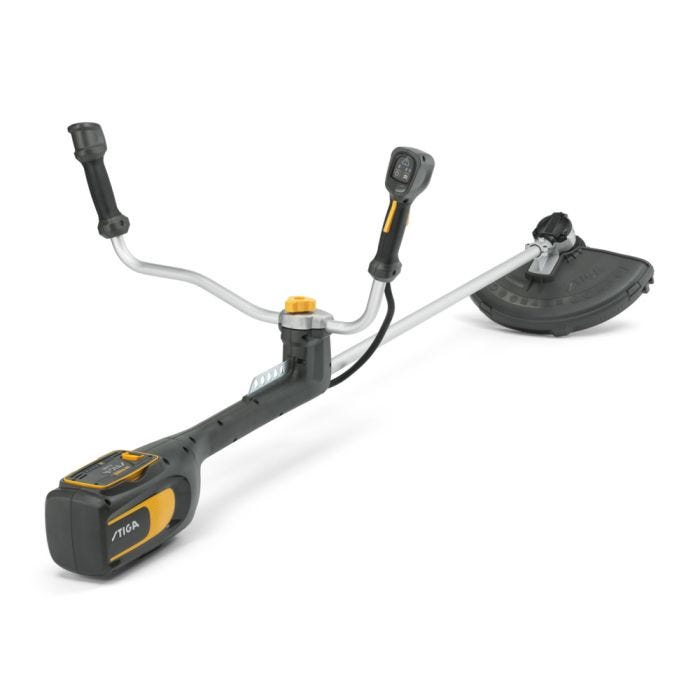

BC 700e B Kit
Battery lawn trimmer - brushcutter
The first ‘bike’ handle style cordless brush cutter in the STIGA battery range, the BC 700e B gives you control, speed and power. With the ePower440 48V 4Ah battery and advanced 500W brushless motor, you get up to 60 minutes of continuous cutting. Every part of the design feels solid, balanced and protected. And with five harness hook positions to choose from, it’s ideal for slopes and rugged terrain. BS Plug.
- STIGA’s first battery bike brushcutter designed for cable-free, efficient working
- Weighs only 5,5kg with robust alloy transmission tube
- Five harness hook positions for optimal balance as you move
- Keypad control panel on handle with LEDS display for safe starts and speed control
- Switch cutting head from easy load dual line to the 3T blade for thicker vegetation
- STIGA ePower battery E 440 (4Ah) and charger included.
- Battery kit included
Product details and specs
Weighing just 5,5kg, the BC 700e B is the first ‘bike’ brush cutter in the STIGA battery range. The 48V 4Ah battery provides up to 60 minutes of non-stop cutting on a single charge. While its lightweight, robust build and smart, ergonomic features meet the most challenging cutting jobs with ease. Uneven ground, steep slope or deep ditch? With five harness hook positions, this brush cutter gives you balance and control wherever you are working. For added strength, the cutter is built using light alloy tube, robustly resistant to bending and vibrations. Use the handle keypad with LEDS display and the trigger switch to set the speed. At 6000 rpm the Bump & Work dual line cutting head gets to work. Or push a button and the 3T arc blade kicks in, delivering 6500 rpm for tougher cutting challenges. And with a 38cm cutting width and high torque, this cutter can slash through thick, high and even wet grass with ease.
Features
Battery powered – for cable-free, easier brushcutting
The BC 700e B delivers between 30-60 minutes of effortless, cable-free cutting.
Comfort and safety: with every move you make

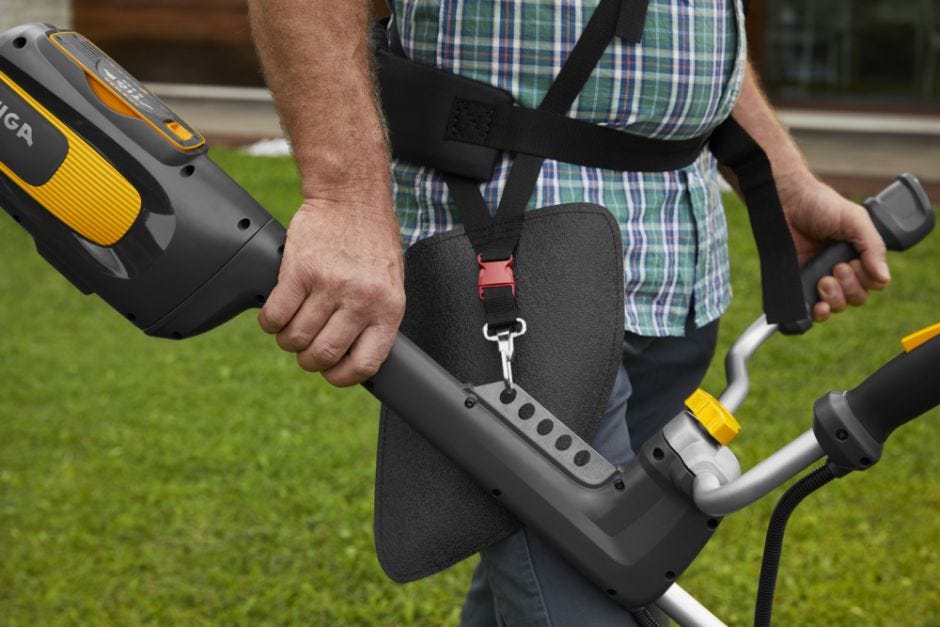

Five harness hook options achieve maximum machine balance to suit your cutting position.

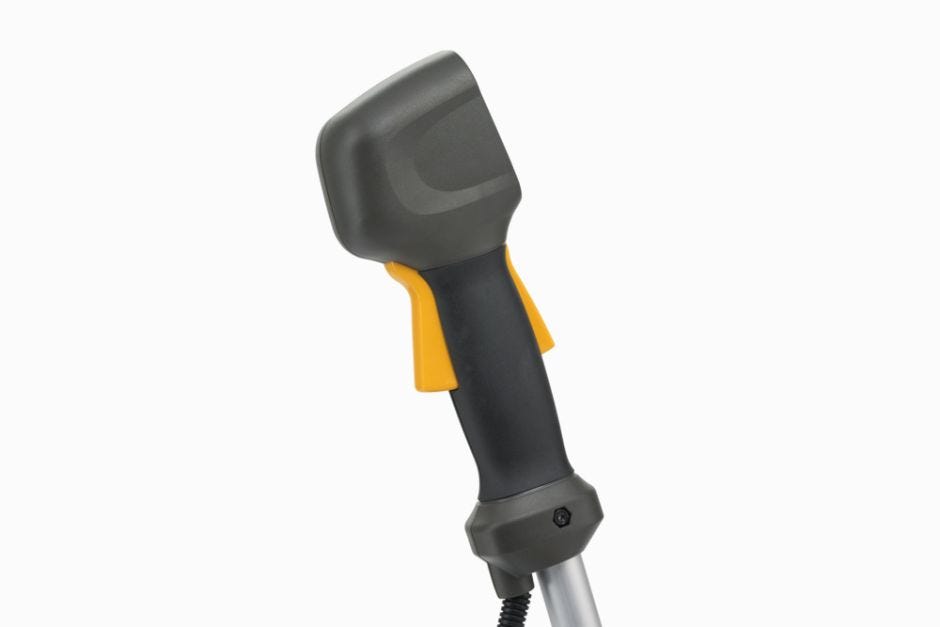

Easy action speed control
Push the trigger on the handle to safely adjust the speed from 6000 rpm - 6500 rpm to match the cutting conditions.
Intuitive keypad
From checking battery power, to switching on and off safely. All you need to control the brushcutter is on the handle’s electronic control panel.
Two types of cutting head – work harder than one
When the vegetation gets tough, the cutting head switches from the easy loading nylon dual line to the tough 3T blade, included as standard.Â
Technology

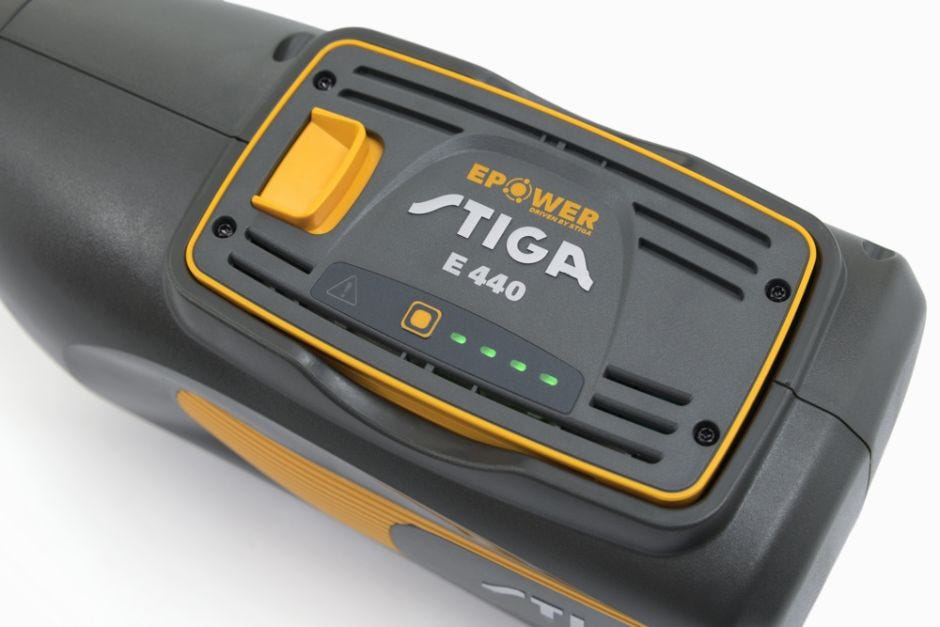

STIGA ePower
Smart, safety tested and synched with STIGA products, ePower is the next generation in batteries. Tests we run on ePower batteries are 5 times tougher than Industry standard requirements, to ensure the highest quality standards in terms of performance, reliability and battery health through time. Our batteries are efficient, as we optimised and secured the position of each individual cell; safe, as we created space to allow air to cool; and smart, as we we developed and tested the electronics and software that controls the cells.
What's in the box
BC 700e B Kit
Battery lawn trimmer - brushcutter- lensKey
- lensHarness
- lensNylon head
- lensBlade
- lensBattery
- lensBattery Charger
Technical specs
General info
EAN/UPC
8008984861411
SKU
PROMO_BC700EBKIT_U
Level
Experience
Series
Series 7, ePower 48 V
Power
Power source
Battery
Battery capacity
4 Ah
ePower
Yes
Power
0.5 kW
Voltage
48 Volt
Battery kit
Included
Motor type
Brushless
Maximum motor speed
6000 rpm
Lithium battery nominal energy
172.8 Wh
Working time (+/- 20%)
30 min
Cutting system
Nylon line diameter (millimeter)
2
Cutting width
38 cm
Cutting angle
Fixed
Nylon head type
Tap & Go dual line easy load
Nylon line length
4 m
Blade type
3T ARC
Blade diameter
255 mm
Equipment
Handle type
Bike
Vibe Control System (VCS)
No
Shaft type
Straight
Shaft tube diameter
25 mm
Soft grip handle
Yes
Harness
Double Comfort
Tools kit
Battery charger
Single standard
Battery charger output current
1.5 A
Battery charger plug type
BS (Type G)
Vibration and noise data
Guaranteed sound power level (LwA) - dB(A)
96
Measured sound power level dB(A)
86
Measured sound pressure level at operator ear dB(A)
76.9
Vibration level front handle (m/s2)
2.89
Vibration level rear handle (m/s2)
3.69
Overall dimensions
Pack weight
0 kg
Product weight without battery
6 kg
Product weight without cutting system
5.6 kg
Product length
1680 mm
Product width
650 mm
Product height
180 mm
Product weight
0 kg
Support
What kind of protective gear should I use?
Using this machine requires clothing that protects the legs and face from objects that could unexpectedly be thrown out during operation. It is always recommended to wear long trousers and a protective visor.
What kind of maintenance should I carry out?
To ensure that the machine is functioning correctly and to maximise its lifespan, we recommend regular (based on the frequency and intensity of use) cleaning of the battery housing and contacts as well as the cutting head (trimmer head and guard) - parts where a lot of dirt constantly builds up.
Remember that it is important to consult the user and maintenance manual for details of each of these tasks.
Remember that it is important to consult the user and maintenance manual for details of each of these tasks.
Which type of grass and shrubs can you work on?
This machine is able to tackle coarser plant conditions, from dense bushes with tall grass to shrub areas, where you can also cut the more stubborn plants and shrubs using the supplied metal blade.
How do you adjust the length of the line?
This model is fitted with a head using the Tap&Go system. This means that, while the machine is operating, you just have to press the control lever all the way to bring the head to maximum rotation and at the same time knock the head against the ground, which causes the line to feed out automatically. Its length can be adjusted simply, by cutting any excess to the length of the cutting blade located on the end of the guard.
For further information, see the instruction manual.
For further information, see the instruction manual.
The line no longer feeds out from the head. What might have happened?
The line failing to feed out may be associated with two main factors. The first, and the most likely, is that the line might be all used up and should therefore be replaced with a new reel. There is also the possibility that the line within the head has accidentally become caught in its own windings, and is preventing the end from freely feeding out through the holes. In this case, simply open the head and re-spool the line correctly inside.
These causes and solutions normally cover the majority of cases, but there may be a variety of others, associated with the methods of use, the surface treated and the weather conditions.
Note that consulting the user manual, in the section relating to the cutting head, may provide useful information for identifying the nature of the problem.
These causes and solutions normally cover the majority of cases, but there may be a variety of others, associated with the methods of use, the surface treated and the weather conditions.
Note that consulting the user manual, in the section relating to the cutting head, may provide useful information for identifying the nature of the problem.
Does the brush cutter have battery and charger included?
Yes, this battery powered brush cutter is sold with 1x 4 Ah, 48V battery and a battery charger.
